    SmallHD 1303 Hdr Production Ab-Mount Monitor Bundle

    SKU
    33.1.MON-1303HDR-GM-KIT
    Be the first to review this product
    • 1500 nit Daylight Viewable Monitor
    • Optically Bonded anti-reflective glass
    • 13' 1920x1080 FullHD resolution
    • SDI/HDMI Cross Conversion
    • Dual SDI In/Out
    • Multi-View mode
    • RapidRail Mounting System
    • AB-Mount Bundle

    Authorised Dealer

    $7,619
    Check stock
    SmallHD 1303 Hdr Production Ab-Mount Monitor Bundle

    SmallHD 1303 Hdr Production Ab-Mount Monitor Bundle

    *
    Save Item
    Whats in the box? Add to Wish List + Add to compare
    live chat

    Live Chat

    Active
    Chat with us
    main product photo
    Loading...

    • Locally owned & operated

    •

      Excellent after sales service

    • Passionate Community

    • Fast , Reliable Shipping

    Product Overview

    Page Builder OS

    Originally featured in the 500 and 700-series models, and extrapolated for the Production Monitor series, the Page Builder OS is an intuitive graphical user interface (GUI) that puts all of the advanced functionality of the 1303 at your fingertips. Rather than have confusing menus, this GUI allows you to selectively apply monitoring tools such as waveforms, vectorscopes, multiview, and focusing aids to up to 4 different "pages". These pages can be easily flipped through using the joystick. The buttons on the front panel can also toggle monitoring tools on and off for each page.

    ColorFlow 3D LUT Processing

    In order to keep your images consistent from production through to post-production, ColorFlow allows you to import 3D LUTs and display the treated image side-by-side with the untreated image to correctly gauge exposure while visualizing what is being recorded by the camera. Side-by-side preview can also be used with the HDR preview function. Separate LUT-treated images can be sent downstream over SDI and HDMI so you can have the 1303 display a log image or LUT-treated image, while the director or client monitors connected to the outputs can receive images treated with a different LUT. An image-capture function saves a still frame from the incoming video stream onto an SD card and also records the applied 3D LUT for post-production reference.

    Color Intelligence Engine

    When a separately available color probe is connected to the monitor via USB, the SmallHD 1303 can automatically adjust a 10-bit 3D calibration LUT for maintaining accurate color reproduction over the life of the monitor.

    RapidRail Shoe-Mount System

    Quickly secure and detach accessories such as wireless units to the rear of the monitor using standard shoe-mount rails. This saves time over traditional screw-mounted methods and keeps your setup clean and neat. If required these accessories can be powered straight off the monitor using the integrated 12V LEMO power output or the 3 USB ports.

    Power Options

    Separately available V-mount or Gold-mount battery plates can be attached to the rear of the display. A mounted battery can power the monitor as well as attached accessories through the 12V LEMO connection. The USB ports on the rear of the monitor can also power accessories with a maximum draw of 0.5 amps per port.

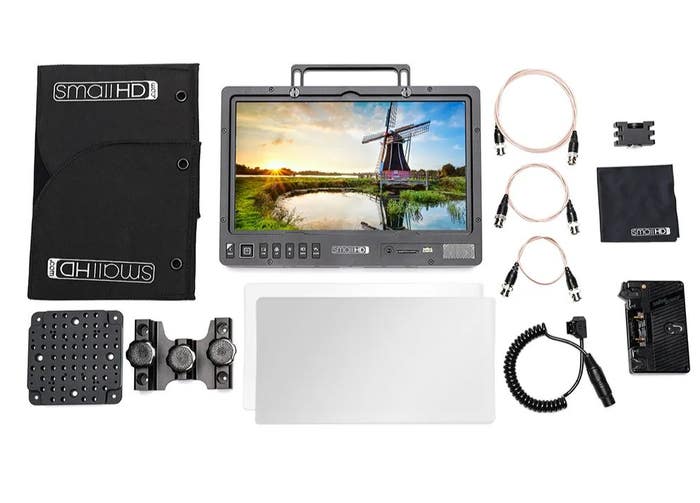

    Whats in the box?
    • SmallHD 1303 HDR Production Monitor
    • AB-Mount Power Kit + Cheesplate
    • C-Stand Mount for 1300 Series
    • 1300 Series Sunhood
    • 1300 Series Screen Impact Protector
    • UltraMatte Screen Protector for 1300 Series
    • RapidRail Mount
    • 30cm Thin SDI Cable
    • 61cm Thin SDI Cable
    • 120cm Thin SDI Cable
    Specifications

    Specifications

    General
    Face Detection
    No
    GTIN/UPC Code
    855534007557
    Max Resolution
    1920 x 1080
    Supported Formats
    SDI: 1080p, 1080i, 720p HDMI: 1080p, 1080i, 720p, 576p, 480p
    Pixels
    Pixel Density 170 PPI
    Relative brightness
    1500 cd/m²
    Aspect Ratio
    16:9
    Color Spaces
    10-bit, 100% REC709
    Connectivity
    Inputs 2 x SDI 1 x HDMI Outputs 2 x SDI 1 x HDMI
    Panoroma Mode
    No
    Operating Storage Temperature
    32 to 100°F / 0 to 37.8°C
    Dimensions
    13" / 33 cm
    Product Weight
    7.9000
    Brands
    smallHD
    Wi-Fi Enabled
    Yes
    External Battery Charger
    No
    HDR Mode
    No
    Landing Gear/Legs Included
    Yes
