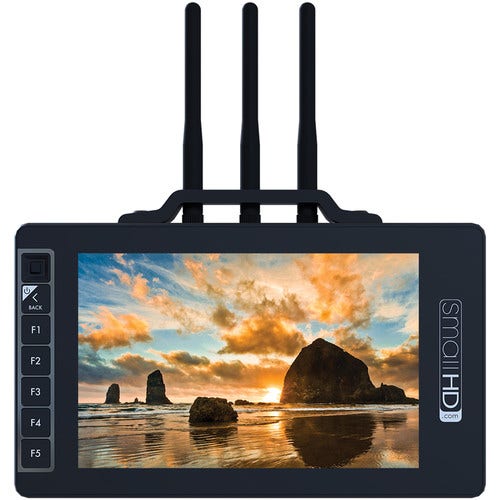

Name: SmallHD 703 Bolt Wireless Monitor
Brand: smallHD
SKU: 33.1.MON-703BOLT
Price: 6415.00 AUD
Availability: InStock

PageBuilder OS

PageBuilder OS is an intuitive graphical user interface (GUI) that puts all the advanced functionality of the 703 Bolt at your fingertips. Rather than have confusing menus, this GUI allows you to selectively apply monitoring tools such as waveform, vectorscope, multiview, LUTs, and focusing aids on different "pages". These pages can be easily flipped through using the joystick. The buttons on the front panel can also toggle monitoring tools on and off for each page.

ColorFlow 3D LUT Processing

To keep your images consistent from production through to post-production, ColorFlow allows you to import 3D LUTs and display the treated image side-by-side with the untreated image to correctly gauge exposure while visualizing what is being recorded by the camera. Separate LUT-treated images can be sent downstream over SDI so you can have the 703 Bolt display a log image or LUT-treated image, while the director or client monitors connected to the outputs can receive images treated with a different LUT. An image capture function saves a still frame from the incoming video stream onto an SD card, and records the applied 3D LUT for post-production reference.

On-Set Problem Solving

PageBuilder OS has a dedicated "Output Preview" page which allows you to apply LUTs and other image adjustments specific to the output signal from the monitor. Whether you have your camera connected to the wireless or SDI inputs on the 703 Bolt, you are not limited by that connection; the 703 Bolt cross-converts to ensure compatibility with downstream hardware.

HD Scopes

Fill the screen with up to three simultaneous scopes, including waveform, vectorscope, and histogram, while still being able to observe the camera feed.

Exposure Tools

Exposure Assist supports both ARRI and Spectrum-based false color, with built-in IRE guides for reference. Utilize 2x Zebra to warn you when reaching a brightness level of your choosing. This is great for matching exposure across shots and cameras.

Customizable Focus Assist and Peaking Tools

As recording resolutions increase, so does the importance of focusing precision. With Focus Assist, you can highlight the areas that are in focus with a bright color. These highlights are easily visible on the fly for quick focus confirmation. Focus Peaking increases the sharpness of the image for a subtler focus confirmation without the need for bright outlines. The color and intensity of these tools are adjustable to fit your preference.

Versatile Frame Guides

Select standard markers and safety areas can be overlaid on the display as lines or matte overlays, with custom opacity level and colors. Default aspect ratios include 4:3, 1.85, 2.39:1, 16:9, and Custom (user-selectable).

Specifications

General

General

Face Detection

No

GTIN/UPC Code

850324007250

Max Resolution

1920 x 1080

Supported Formats

SDI (10-Bit 4:2:2 YCC) 1080p: 23.98/24/25/29.97/30/50/59.94/60 1080PsF: 23.98/24/25/29.97/30 1080i: 50/59.94/60 720p: 23.98/24/25/29.97/30/50/59.94/60 576i 480i Wireless (10-Bit 4:2:2) 1080p: 23.98/24/25/29.97/30/50/59.94/60 1080PsF: 23.98/24/25/2

Pixels

Pixels Per Inch (ppi) 323 ppi

Relative brightness

3000 cd/m2

Aspect Ratio

16:9

Color Spaces

8-Bit (16.7 Million Colors), 70% NTSC

Connectivity

1 x BNC (3G-SDI) Input/Output 1 x HDMI Type A Output 1 x BNC (3G-SDI) Input, 1 x 3.5 mm Headphone Output, 1 x 2-Pin LEMO Input

Panoroma Mode

No

Dimensions

7.0" / 17.8 cm

Product Weight

2.8100

Brands

smallHD

Wi-Fi Enabled

Yes

External Battery Charger

No

HDR Mode

No

Landing Gear/Legs Included

Yes
